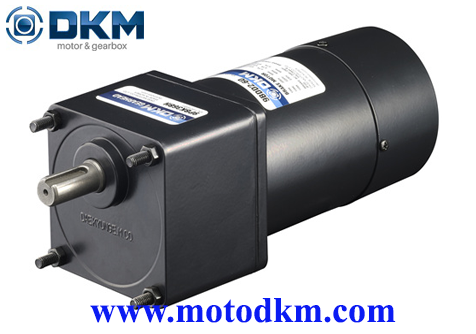

Brake motor DKM 7BDGE-6G-7GBK9BMH

Motor Model	Output	Voltage V	Freq Hz	Starting Torque			Rated Torque			Rated Current A	Rated Speed r/min	Duty Min	Certificate	TP
				kgfcm	N.m	oz-in	kgfcm	N.m	oz-in
7BDGE-6G	6	220	50	0.61	0.061		0.47	0.047		0.15	1250	30 min.		O
		240	50	0.72	0.072		0.47	0.047		0.17	1250

Gearhead Model

Ratio

Speed RPM

Permissible Torque

최대허용토크/허용 Overhung 하중과 허용 Thrust 하중표

Certificate

50Hz

60Hz

50Hz

60Hz

최대허용토크

허용 Overhung 하중

허용 Thrust 하중

RPM

Kg·m

N·m

Ib·in

Kg·m

N·m

Ib·in

kgfcm

7GBK9BMH

9.00

166

200

5.2

0.51

4.1

0.40

80.00

120.00

* These are ‘reference figures’ when the gearhead is attached to the ‘induction motor’. Please refer to the PDF file of our catalogue if you
need exact figures of the selected gearhead.
* In case of attaching inter-decimal gearhead, the revolution speed of output shaft of gearhead will reduce by 1/10.
