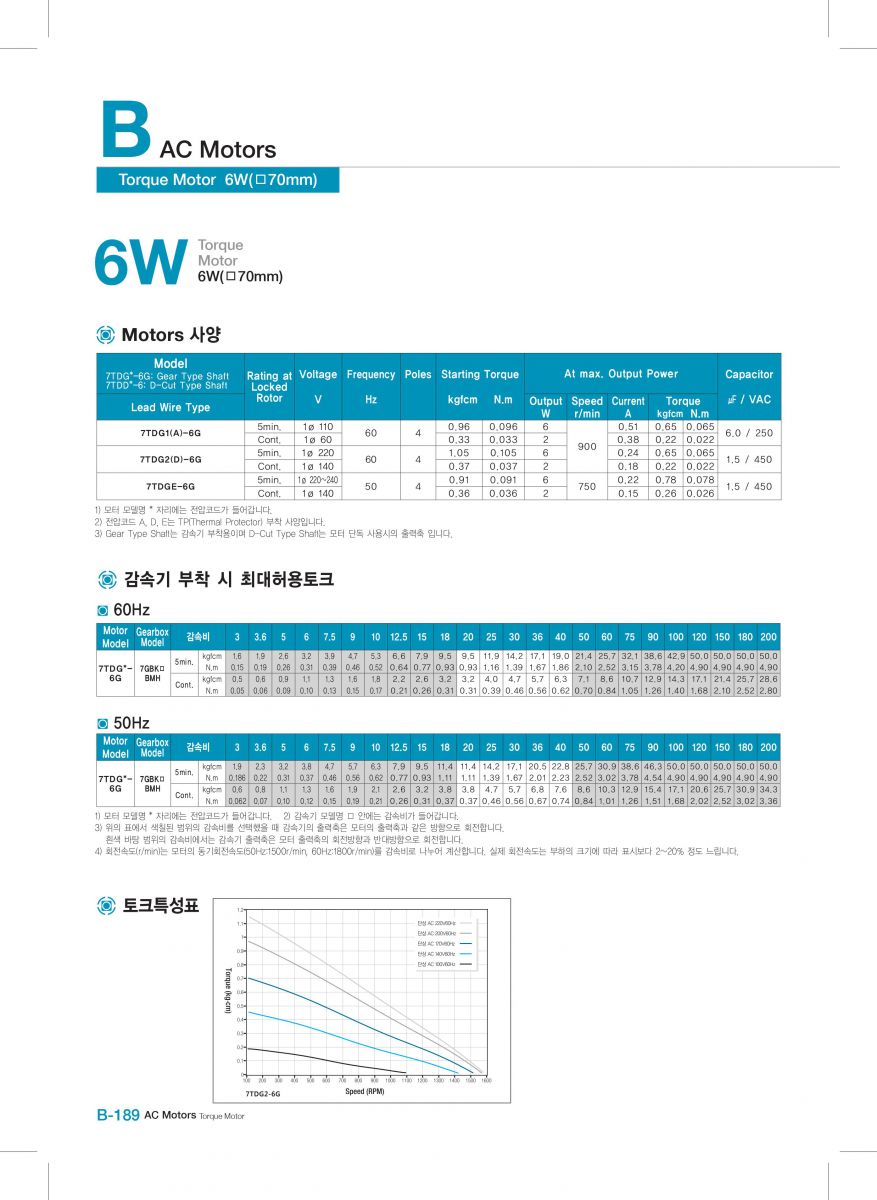

| Motor Model | Duty | Voltage V |
Freq Hz |
Starting Torque | Output | At max. Output Power | Certificate | TP | |||||||
| kgfcm | N.m | oz-in | Speed r/min |
Torque | Current A |
Input W |
|||||||||
| kgfcm | N.M | oz-in | |||||||||||||
| 7TDGE-6G | 5 min. | O | |||||||||||||
| Cont. | |||||||||||||||
| Gearhead Model | Ratio | Speed RPM | Permissible Torque | 최대허용토크/허용 Overhung 하중과 허용 Thrust 하중표 | Certificate | ||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | 최대허용토크 | 허용 Overhung 하중 | 허용 Thrust 하중 | |||||||
| RPM | RPM | Kg·m | N·m | Ib·in | Kg·m | N·m | Ib·in | kgfcm | kg | kg | |||
| 7GBK9BMH | 9.00 | 166 | 200 | 5.2 | 0.51 | 4.1 | 0.40 | 80.00 | 120.00 | 40 | |||
* These are ‘reference figures’ when the gearhead is attached to the ‘induction motor’. Please refer to the PDF file of our catalogue if you
need exact figures of the selected gearhead.
* In case of attaching inter-decimal gearhead, the revolution speed of output shaft of gearhead will reduce by 1/10.
