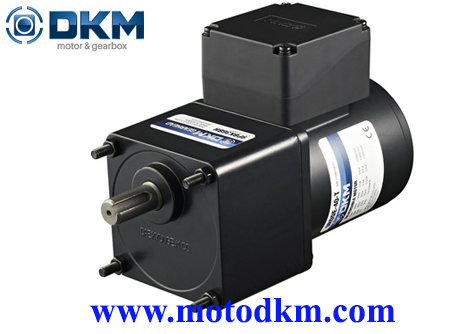

Reversible Motor dkm-7RDG2-6G-T-7GBK9BMH

Reversible Motor dkm-7RDG2-6G-T-7GBK30BMH

Motor Model

Output

Voltage
V

Freq
Hz

Starting Torque

Rated Torque

Rated Current
A

Rated Speed
r/min

Duty
Min

Certificate

kgfcm

N.m

oz-in

kgfcm

N.m

oz-in

7RDG2-6G-T

220

0.75

0.075

0.37

0.037

0.17

1600

30 min.

Gearhead Model

Ratio

Speed RPM

Permissible Torque

최대허용토크/허용 Overhung 하중과 허용 Thrust 하중표

Certificate

50Hz

60Hz

50Hz

60Hz

최대허용토크

허용 Overhung 하중

허용 Thrust 하중

RPM

Kg·m

N·m

Ib·in

Kg·m

N·m

Ib·in

kgfcm

7GBK9BMH

9.00

166

200

5.2

0.51

4.1

0.40

80.00

120.00

* These are ‘reference figures’ when the gearhead is attached to the ‘induction motor’. Please refer to the PDF file of our catalogue if you
need exact figures of the selected gearhead.
* In case of attaching inter-decimal gearhead, the revolution speed of output shaft of gearhead will reduce by 1/10.
