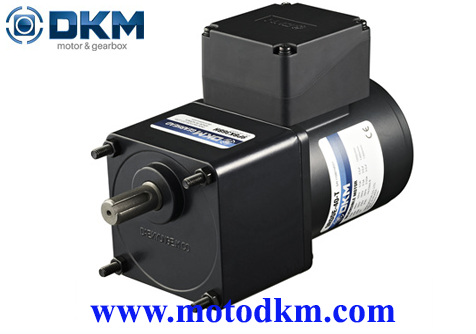

induction-motor-DKM-6IDGE-6G-T-6GBD9MH
| Motor Model | Output | Voltage V |
Freq Hz |
Starting Torque | Rated Torque | Rated Current A |
Rated Speed r/min |
Duty Min |
Certificate | TP | ||||
| kgfcm | N.m | oz-in | kgfcm | N.m | oz-in | |||||||||
| 6IDGE-6G-T | 6 | 220 | 50 | 0.55 | 0.055 | 0.49 | 0.049 | 0.09 | 1200 | Cont. | X | |||
| 240 | 50 | 0.66 | 0.066 | 0.49 | 0.049 | 0.10 | 1200 | |||||||
| Gearhead Model | Ratio | Speed RPM | Permissible Torque | 최대허용토크/허용 Overhung 하중과 허용 Thrust 하중표 | Certificate | ||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | 최대허용토크 | 허용 Overhung 하중 | 허용 Thrust 하중 | |||||||
| RPM | RPM | Kg·m | N·m | Ib·in | Kg·m | N·m | Ib·in | kgfcm | kg | kg | |||
| 6GBD9MH | 9.00 | 167 | 200 | 3.3 | 0.32 | 2.7 | 0.26 | 6.00 | 6.00 | 3 | |||
