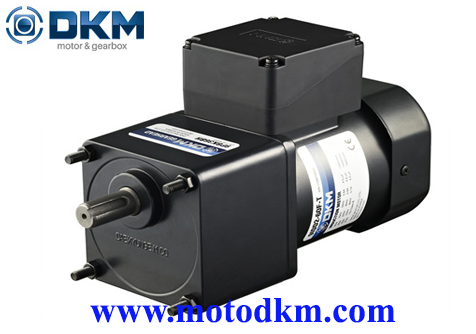

induction-motor-DKM 9IDGE-60FP-T-9PBK10BH
| Motor Model | Output | Voltage V |
Freq Hz |
Starting Torque | Rated Torque | Rated Current A |
Rated Speed r/min |
Duty Min |
Certificate | TP | ||||
| kgfcm | N.m | oz-in | kgfcm | N.m | oz-in | |||||||||
| 9IDGE-60FP-T | 60 | 220 | 50 | 3.90 | 0.390 | 4.50 | 0.450 | 0.48 | 1300 | Cont. | CE | O | ||
| 240 | 50 | 4.80 | 0.480 | 4.50 | 0.450 | 0.54 | 1300 | |||||||
| Gearhead Model | Ratio | Speed RPM | Permissible Torque | 최대허용토크/허용 Overhung 하중과 허용 Thrust 하중표 | Certificate | ||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | 최대허용토크 | 허용 Overhung 하중 | 허용 Thrust 하중 | |||||||
| RPM | RPM | Kg·m | N·m | Ib·in | Kg·m | N·m | Ib·in | kgfcm | kg | kg | |||
| 9PBK10BH | 10.00 | 150 | 180 | 35.1 | 3.44 | 29.6 | 2.90 | 40.00 | 45.00 | 15 | |||
