| Motor Model | Output | Voltage V |
Freq Hz |
Starting Torque | Rated Torque | Rated Current A |
Rated Speed r/min |
Duty Min |
Certificate | TP | ||||
| kgfcm | N.m | oz-in | kgfcm | N.m | oz-in | |||||||||

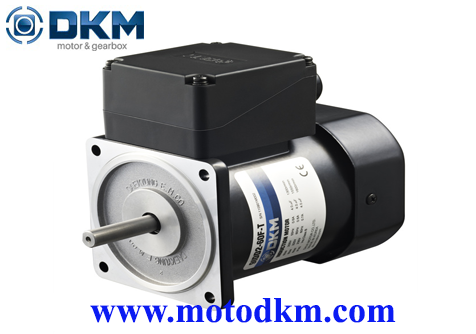

| 9IDDE-120F-AT | 120 | 220 | 50 | 3.20 | 0.320 | 4.50 | 0.450 | 0.98 | 2600 | Cont. | O | |||
| 240 | 50 | 3.80 | 0.380 | 4.50 | 0.450 | 1.08 | 2600 | |||||||
