| Motor Model | Output | Voltage V |
Freq Hz |
Starting Torque | Rated Torque | Rated Current A |
Rated Speed r/min |
Duty Min |
Certificate | TP | ||||
| kgfcm | N.m | oz-in | kgfcm | N.m | oz-in | |||||||||

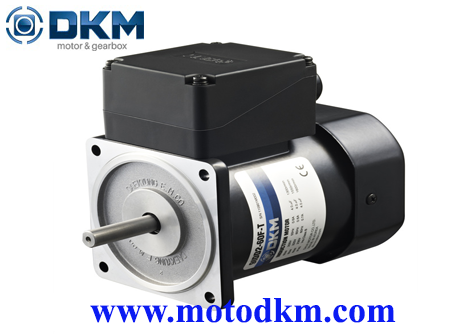

| 9IDDG-150F-AT | 150 | 220 | 50 | 13.91 | 1.391 | 5.41 | 0.541 | 0.83 | 2700 | Cont. | O | |||
| 60 | 11.08 | 1.108 | 4.57 | 0.457 | 0.75 | 3200 | ||||||||
| 230 | 50 | 14.97 | 1.497 | 5.41 | 0.541 | 0.91 | 2700 | |||||||
| 60 | 11.97 | 1.197 | 4.57 | 0.457 | 0.80 | 3200 | ||||||||
