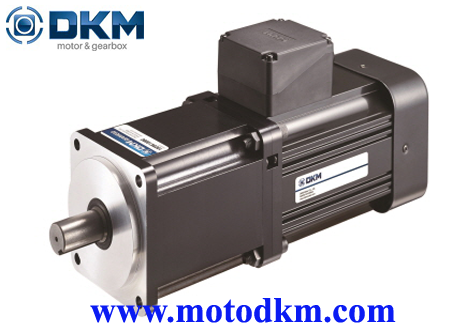

INDUCTION MOTOR DKM 10IDGD-300FU-T-10UBK10BH
| Motor Model | Output | Voltage V |
Freq Hz |
Starting Torque | Rated Torque | Rated Current A |
Rated Speed r/min |
Duty Min |
Certificate | TP | ||||
| kgfcm | N.m | oz-in | kgfcm | N.m | oz-in | |||||||||
| 10IDGD-300FU-T | 300 | 220 | 60 | 13.60 | 1.360 | 18.27 | 1.827 | 2.52 | 1600 | Cont | O | O | ||
| Gearhead Model | Ratio | Speed RPM | Permissible Torque | 최대허용토크/허용 Overhung 하중과 허용 Thrust 하중표 | Certificate | ||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | 최대허용토크 | 허용 Overhung 하중 | 허용 Thrust 하중 | |||||||
| RPM | RPM | Kg·m | N·m | Ib·in | Kg·m | N·m | Ib·in | kgfcm | kg | kg | |||
| 10UBK10BH | 10.00 | 150 | 180 | 170.0 | 16.66 | 140.0 | 13.72 | 400.00 | 55.00 | 20 | |||
