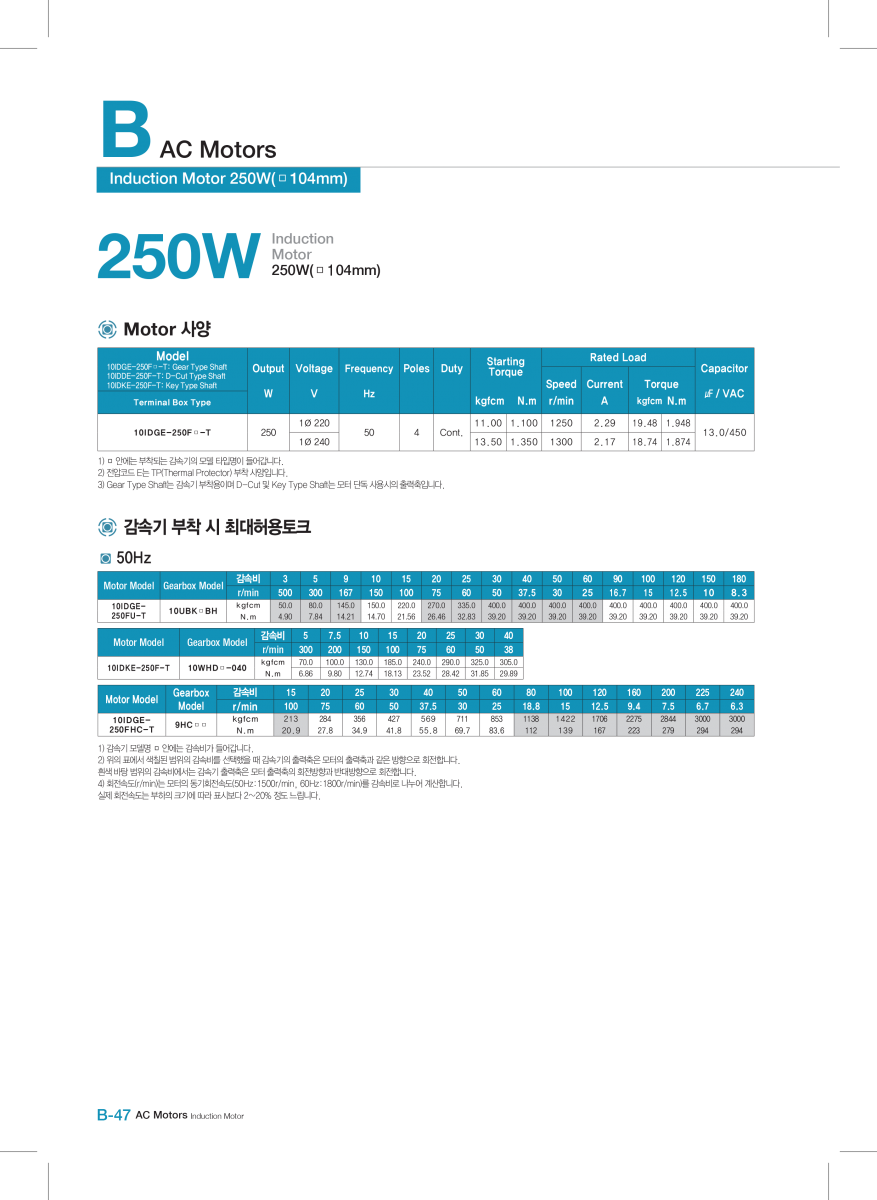

induction-motor-DKM 10IDGE-250FU-T-10UBK10BH
| Motor Model | Output | Voltage | Freq | Starting Torque | Rated Torque | Rated Current | Rated Speed | Duty | Certificate | TP | ||||
| V | Hz | kgfcm | N.m | oz-in | kgfcm | N.m | oz-in | A | r/min | Min | ||||
| 10IDGE-250FU-T | 250 | 220 | 50 | 11 | 1.1 | 19.48 | 1.948 | 2.29 | 1250 | O | O | |||
| 240 | 50 | 13.5 | 1.35 | 18.74 | 1.874 | 2.17 | 1300 | |||||||
| Gearhead Model | Ratio | Speed RPM | Permissible Torque | 최대허용토크/허용 Overhung 하중과 허용 Thrust 하중표 | Certificate | |||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | 최대허용토크 | 허용 Overhung 하중 | 허용 Thrust 하중 | ||||||||
| RPM | RPM | Kg·m | N·m | Ib·in | Kg·m | N·m | Ib·in | kgfcm | kg | kg | ||||
| 10UBK10BH | 10 | 150 | 150 | 14.7 | 400 | 55 | 20 | |||||||
