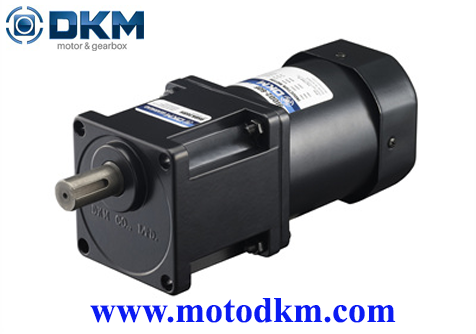

induction-motor-DKM 9IDGG-150FH-T-9HBK10BH
| Motor Model | Output | Voltage V |
Freq Hz |
Starting Torque | Rated Torque | Rated Current A |
Rated Speed r/min |
Duty Min |
Certificate | TP | ||||
| kgfcm | N.m | oz-in | kgfcm | N.m | oz-in | |||||||||
| 9IDGG-150FH-T | 150 | 220 | 50 | 22.00 | 2.200 | 11.30 | 1.130 | 1.00 | 1300 | Cont. | O | |||
| 220 | 60 | 19.00 | 1.900 | 9.40 | 0.940 | 0.90 | 1550 | |||||||
| Gearhead Model | Ratio | Speed RPM | Permissible Torque | 최대허용토크/허용 Overhung 하중과 허용 Thrust 하중표 | Certificate | ||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | 최대허용토크 | 허용 Overhung 하중 | 허용 Thrust 하중 | |||||||
| RPM | RPM | Kg·m | N·m | Ib·in | Kg·m | N·m | Ib·in | kgfcm | kg | kg | |||
| 9HBK10BH | 10.00 | 150 | 180 | 91.0 | 8.92 | 76.3 | 7.48 | 300.00 | 55.00 | 15 | |||
