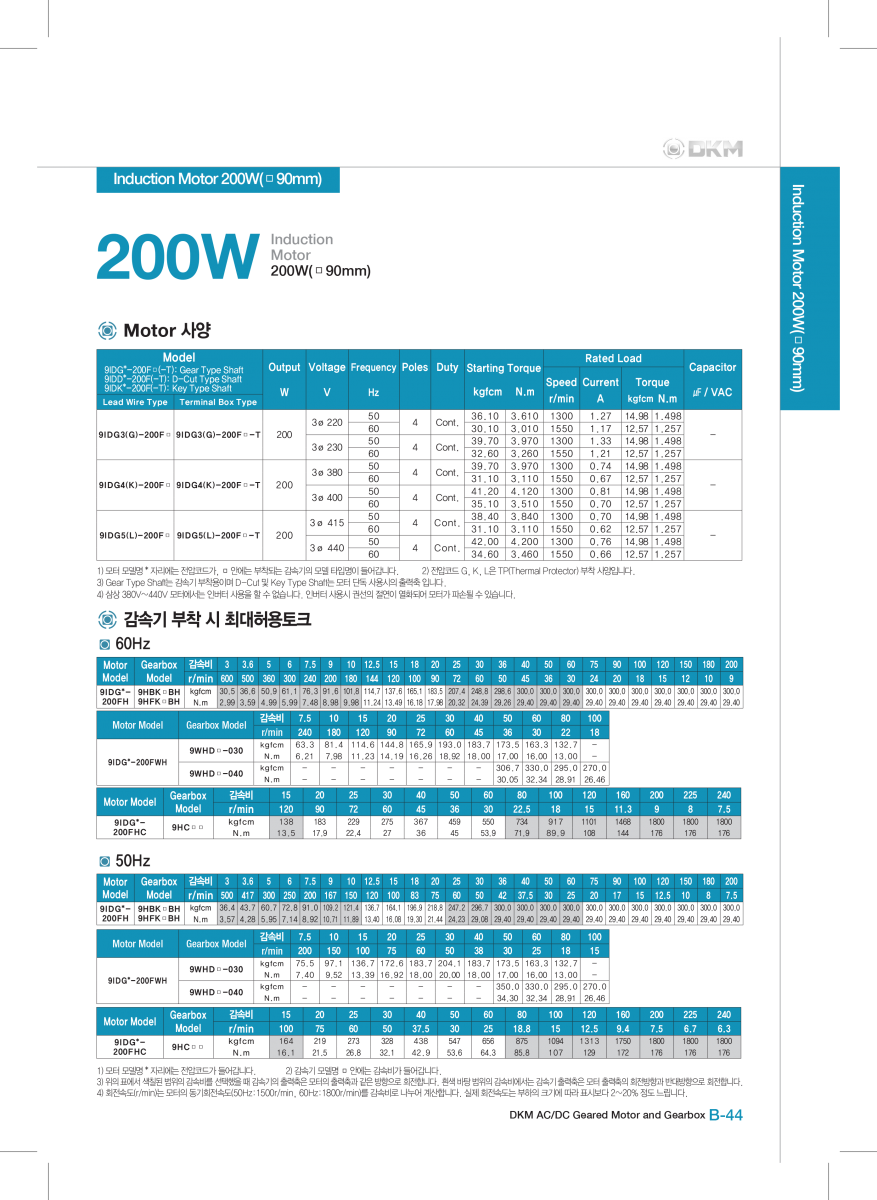

| Motor Model | Output | Voltage | Freq | Starting Torque | Rated Torque | Rated Current | Rated Speed | Duty | Certificate | TP | ||||
| V | Hz | kgfcm | N.m | oz-in | kgfcm | N.m | oz-in | A | r/min | Min | ||||

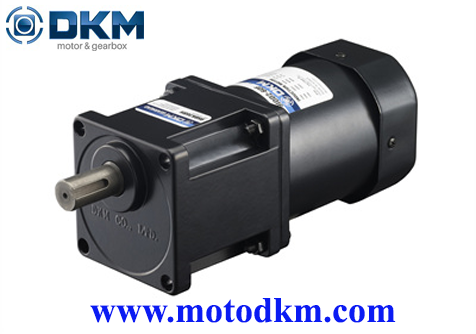

| 9IDGG-200FH-T | 200 | 220 | 50 | 36.1 | 3.61 | 14.98 | 1.498 | 1.27 | 1300 | Cont. | O | |||
| 60 | 30.1 | 3.01 | 12.57 | 1.257 | 1.17 | 1550 | ||||||||
| 230 | 50 | 39.7 | 3.97 | 14.98 | 1.498 | 1.33 | 1300 | |||||||
| 60 | 32.6 | 3.26 | 12.57 | 1.257 | 1.21 | 1550 | ||||||||
| Gearhead Model | Ratio | Speed RPM | Permissible Torque | 최대허용토크/허용 Overhung 하중과 허용 Thrust 하중표 | Certificate | |||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | 최대허용토크 | 허용 Overhung 하중 | 허용 Thrust 하중 | ||||||||
| RPM | RPM | Kg·m | N·m | Ib·in | Kg·m | N·m | Ib·in | kgfcm | kg | kg | ||||
| 9HBK10BH | 10 | 150 | 180 | 121.4 | 11.89 | 101.8 | 9.98 | 300 | 55 | 15 | ||||

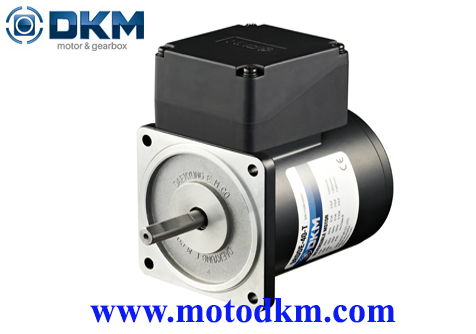

INDUCTION MOTOR motor-dkm-9IDK-200F
